Tilting Heated Process Kettle System
Industrial heated kettle system designed for controlled batch processing, melting, mixing, and pouring of waxes, oils, cosmetics, soaps, and other temperature-sensitive materials.
Unlike basic open kettles or manual pour pots, this system integrates controlled heating with a tilting discharge design, allowing operators to safely and efficiently process and transfer material with precision.
Ideal for operations outgrowing manual pouring or high viscosity pouring.
Designed for Controlled Batch Processing
This system is ideal for operations requiring repeatable heating and controlled discharge without the cost or complexity of fully automated systems.
- Melting and holding waxes, oils, and blends
- Batch processing for soap, cosmetics, and industrial materials
- Controlled pouring into molds or downstream containers
- Improved operator control compared to fixed tank systems
Integrated Heating + Manual Discharge
The heated kettle system combines direct or controlled heating with a tilting frame, allowing operators to manage both temperature and flow without pumps or complex transfer systems.
- Heated vessel maintains consistent material temperature
- Tilting design enables full material discharge
- Eliminates need for manual scooping or unsafe pouring
- Improves batch-to-batch consistency

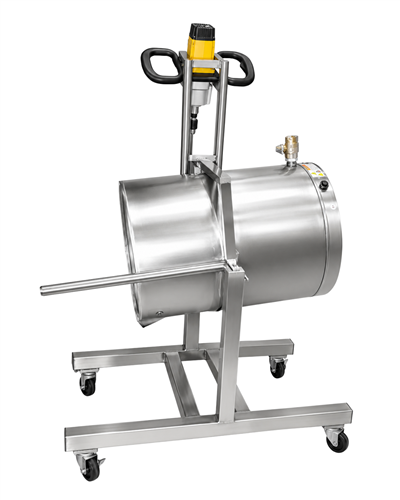

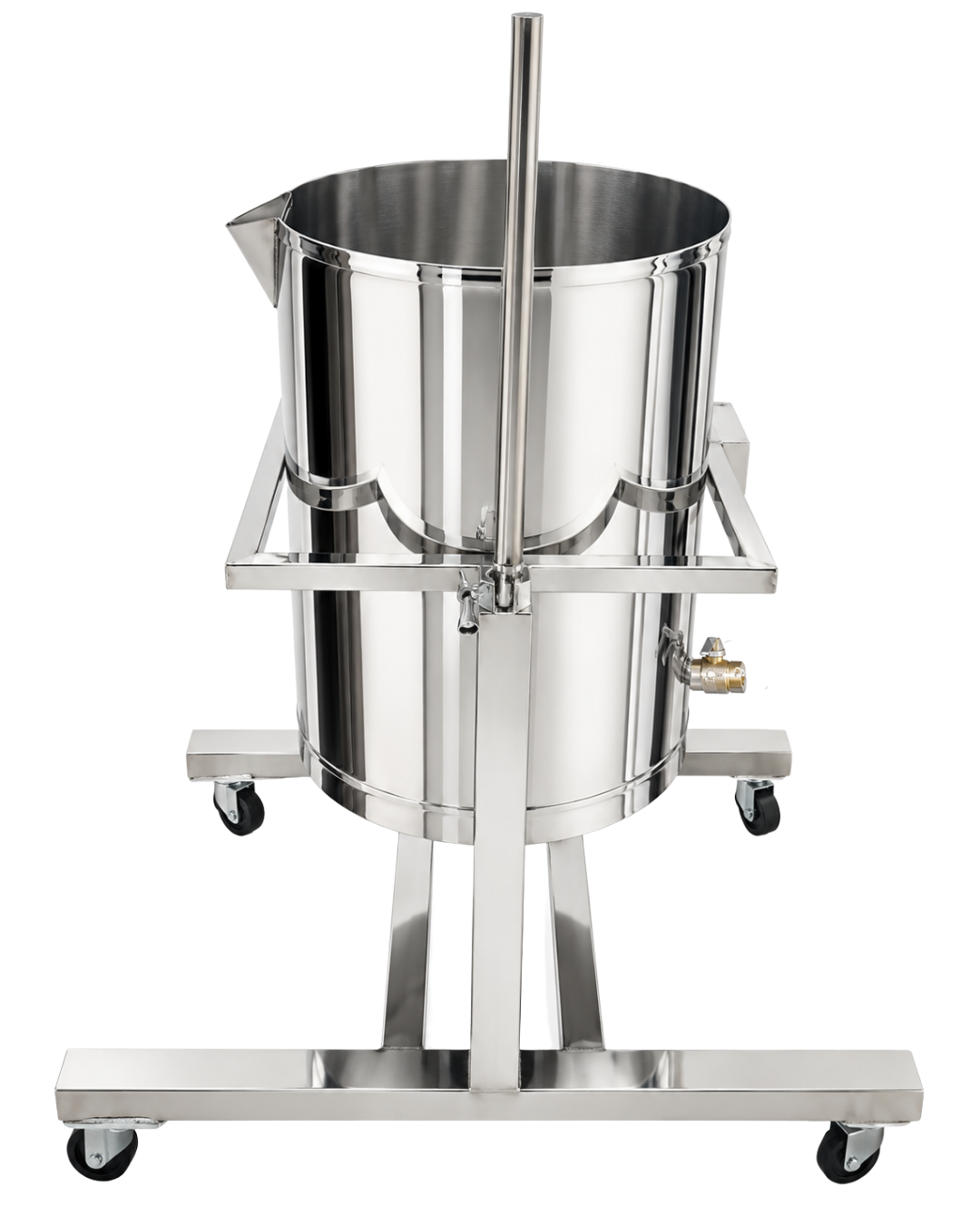

Titling Heated Kettle has Upper & Lower Pouring Spouts With EZTILT FULL 360° Tilt Pour
->

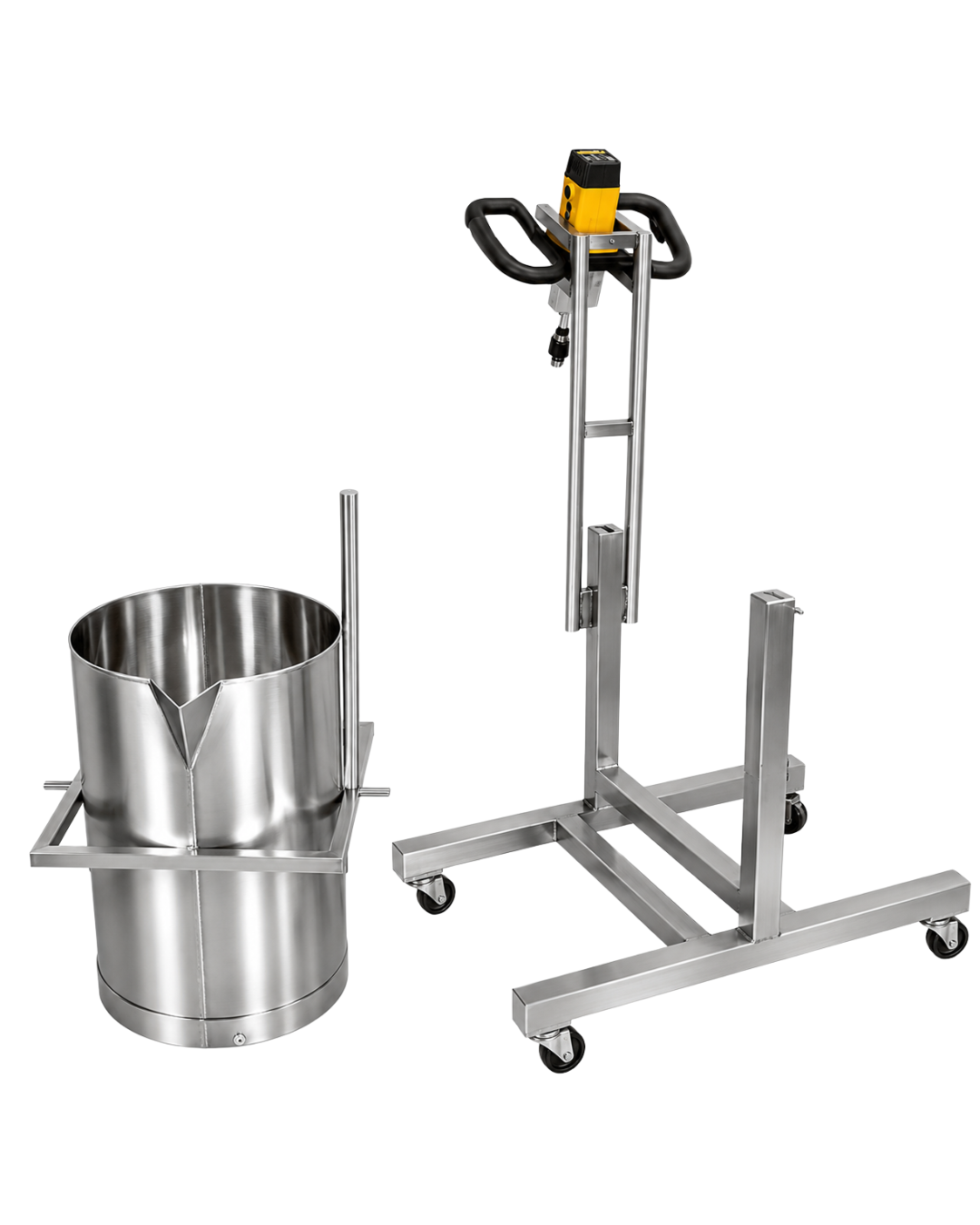

Heated Kettle Pot Removeable For Easy Cleaning
Key System Features
- Industrial-grade stainless steel kettle construction
- Integrated heating system for controlled temperature processing
- Tilting discharge frame for full material evacuation
- Heavy-duty mobile base with locking casters
- Designed for repeated daily production use
- Simple operation with minimal training required
Position in Your Process
This system bridges the gap between small-scale manual processing and fully automated production systems.
- Upstream: material melting and preparation
- Mid-process: batch mixing and temperature control
- Downstream: controlled discharge into molds or filling systems
For operations scaling production, this system serves as a cost-effective entry point into controlled thermal processing.
Typical Applications
- Soap and body care production
- Candle and wax processing
- Cosmetic creams, balms, and oils
- Food-grade heating applications (non-pressure)
- Industrial coatings and specialty materials
Available Configurations
- Multiple kettle sizes and capacities
- Optional heating configurations
- Custom discharge heights and tilt ranges
- Material-specific build options
Upgrade Path
Many customers begin with a heated kettle system and later integrate with dispensing, pumping, or automated filling systems as production scales.
Call (888) WAX-MELTERS or request a quote to configure your system.
