Commercial Beekeeping Equipment
Industrial Hive Dipping Systems
WaxMelters designs and manufactures high-temperature
electric hive dipping tanks for commercial beekeeping
operations requiring controlled wax immersion,
repeatable processing and durable industrial construction.
Each system can be configured around your hive-box
dimensions, batch size, required operating temperature
and the amount of wax displaced during immersion.
Fast, even, energy-efficient electric heating: engineered for real production.
270–320°F (up to 400°F/204°C) High-temperature configurations
Electric
No open-flame burner
Digital
Controlled temperature
Custom
Built around your process
Designed Around Material Displacement
 A loaded dipping tank demonstrates how much liquid volume
can be displaced as material is submerged.
Hive dipping is not simply a matter of heating wax.
Submerging one or more hive boxes displaces a substantial
volume of molten material inside the tank.
The amount of displacement depends on the outside
dimensions of the boxes, number of boxes per batch,
immersion depth and tank dimensions.
WaxMelters therefore offers several tank configurations
for managing displaced wax during the dipping cycle —
from a straightforward immersion tank to dedicated
spillway and reservoir/trough systems.
Why this matters:
The overflow-management system should be selected as part
of the tank design — not treated as an afterthought after
the dipping tank has already been built.
Choose Your Hive Dipping Tank Configuration
WaxMelters can build the dipping tank around the amount of
overflow management and material containment your process requires.
Standard Hive Dipping Tank
A straightforward heated immersion tank for applications
that do not require a dedicated external overflow area.
- Custom tank dimensions
- Electric high-temperature heating
- Digital temperature control
- Designed around hive-box dimensions
- Suitable for simpler immersion processes
POPULAR PRODUCTION CONFIGURATION

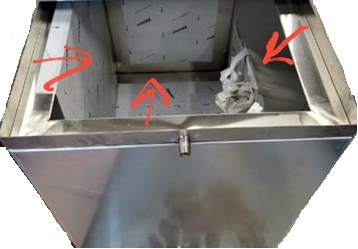

Spillway Return System
Adds a fabricated spillway around the tank to manage
wax displaced during immersion and provide a controlled
path for material to return to the processing area.
- Controls displaced wax during immersion
- Provides a controlled return path
- Reduces uncontrolled overflow and material loss
- Well suited to repeated production cycles
- Available in 2" and 3" spillway configurations
Reservoir / Trough System
Adds an additional fabricated inner wall to create
a dedicated perimeter trough for increased containment
and management of displaced wax and process material.
- The reservoir/trough configuration goes beyond a basic spillway by adding another fabricated wall to create a dedicated channel around the processing tank.
- Dedicated containment area around the tank
- Additional fabricated inner wall
- Greater displaced-material capacity
- Enhanced overflow management
- Available in 2" × 2" and 3" × 3" configurations
Choose the Overflow Capacity
The appropriate size depends on the dipping tank dimensions,
load displacement, number of hive boxes submerged per cycle
and the amount of overflow-management capacity required.
Spillway Return Systems
2" Spillway
3" Spillway
A larger spillway provides additional capacity for
managing displaced material on larger tanks or
higher-displacement dipping processes.
Reservoir / Trough Systems
2" × 2" Reservoir / Trough
3" × 3" Reservoir / Trough
Reservoir/trough systems incorporate the additional
fabricated wall and provide increased dedicated
containment around the processing tank.
Not sure which configuration you need?
Provide the dimensions of the hive boxes, quantity per batch,
tank dimensions or desired batch size, and operating process.
WaxMelters can determine which configuration is appropriate.
Typical Hive Dipping Process
1
Load
Add the specified wax or wax blend to the dipping system.
2
Heat
Bring the material to the required processing temperature.
3
Submerge
Lower the hive boxes into the heated wax using the selected fixture.
4
Hold
Maintain immersion for the process-specific dwell time.
5
Drain
Remove the boxes and allow excess material to return to the system.
6
Repeat
Continue through subsequent batches for production processing.
Engineered for High-Temperature Dipping
Commercial hive dipping requires sustained, controlled heat.
WaxMelters systems can be configured for high-temperature
wax-processing applications in the 270°F–320°F range (unit reaches up to 400°F/204°C).
Fast, Even Electric Heating
Controlled electric heating eliminates the need for
an open-flame propane burner and provides repeatable
temperature control throughout the dipping process.
Insulated Construction
Double-wall insulated construction helps retain
processing heat and reduces unnecessary energy loss.
Digital Temperature Control
Maintain the specified processing temperature.
Production-Ready Design
Systems can be configured for repeated dipping cycles,
multiple hive boxes and continuous batch production.
Hive Dipping System Features
- Electric heating with digital temperature control
- High-temperature configurations up to 320°F/160°C
- Fast, even heating without an open-flame burner
- Double-wall insulated stainless steel construction
- Custom tank length, width and depth
- Standard, spillway and reservoir/trough configurations
- 2" and 3" overflow-management options
- Optional hive-box submersion fixtures and lids
- Drain ports and cleaning configurations available
- Designed for batch and repeated production use
Custom Built Around Your Hive Boxes
Hive dipping systems are not one-size-fits-all.
Tank dimensions should be based on the actual outside
dimensions of the hive boxes, the number being processed
per batch, their orientation and the required immersion depth.
WaxMelters can also account for material displacement,
overflow-management requirements, fixtures, drain locations,
controls and facility electrical requirements.
To configure your system, provide:
- Hive-box outside dimensions
- Number of boxes per batch
- Desired box orientation
- Required immersion depth
- Wax or wax-blend being processed
- Required operating temperature
- Target cycle or production rate
- Available electrical service
Built for Commercial Beekeeping Operations
Configure Your Hive Dipping System
Send us your hive-box dimensions, quantity per batch,
operating temperature and production requirements.
We can help determine the appropriate tank dimensions,
spillway or reservoir/trough configuration and system options.
Request a Hive Dipping System Quote
|
|
|
