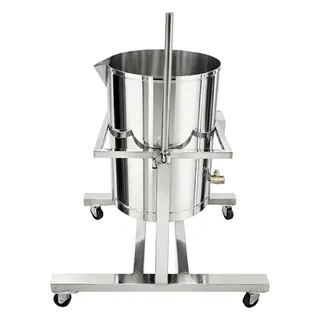

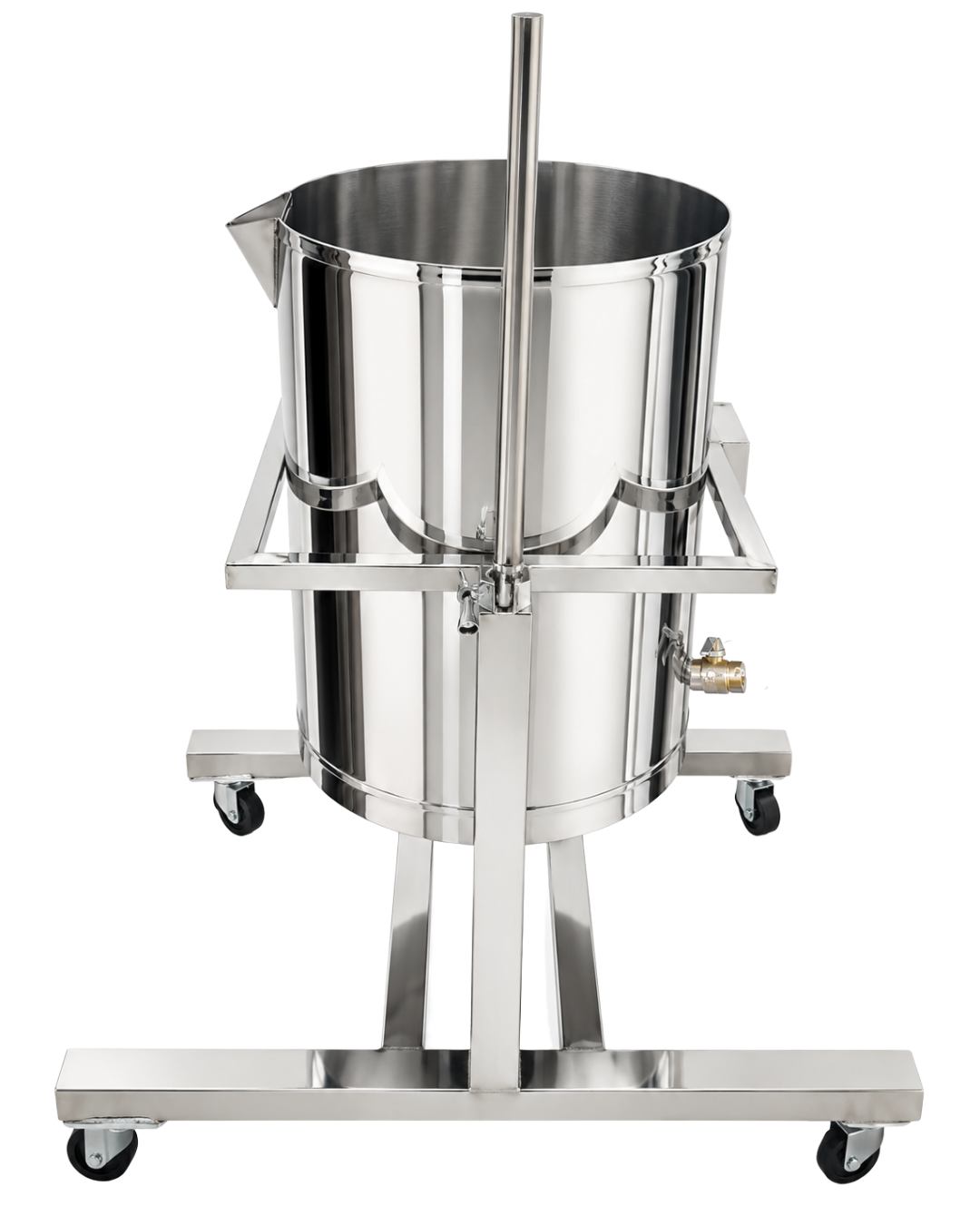

Tilting Heated Process Kettle System
Tilting heated process kettle system with controlled heating for batch processing and easy pouring. Built in the USA by WaxMelters. Request a quote. Starting price $4,495 USD. Usually ships within 7 days. Voltage: 110-120 V, 220-240 V, 480 V or 600 V.
Manual
Manual (PDF)PRIMO Tilting Process Kettle ManualPDF · 489.2 KB · 2026 editionDownload ManualView onlineTroubleshooting & videos
Tilting Heated Process Kettle System
Industrial heated kettle system designed for controlled batch processing, melting, mixing, and pouring of waxes, oils, cosmetics, soaps, and other temperature-sensitive materials.
Industrial heated kettle system designed for controlled batch processing, melting, mixing, and pouring of waxes, oils, cosmetics, soaps, and other temperature-sensitive materials.
This system integrates controlled heating with a tilting discharge design, allowing operators to safely and efficiently process and transfer material with precision.
Ideal for operations outgrowing manual pouring or high viscosity pouring.
Designed for Controlled Batch Processing
This system is ideal for operations requiring repeatable heating and controlled discharge without the cost or complexity of fully automated systems.
- Melting and holding waxes, oils, and blends
- Batch processing for soap, cosmetics, and industrial materials
- Controlled pouring into molds or downstream containers
- Improved operator control with tilting discharge
Integrated Heating + Manual Discharge
The heated kettle system combines direct or controlled heating with a tilting frame, allowing operators to manage both temperature and flow without pumps or complex transfer systems.
- Heated vessel maintains consistent material temperature
- Tilting design enables full material discharge
- Eliminates need for manual scooping or unsafe pouring
- Improves batch-to-batch consistency

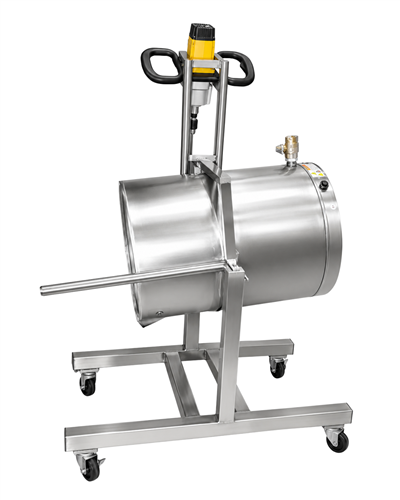

Tilting Heated Kettle has Upper & Lower Pouring Spouts With EZTILT FULL 360° Tilt Pour
.png)
.png)

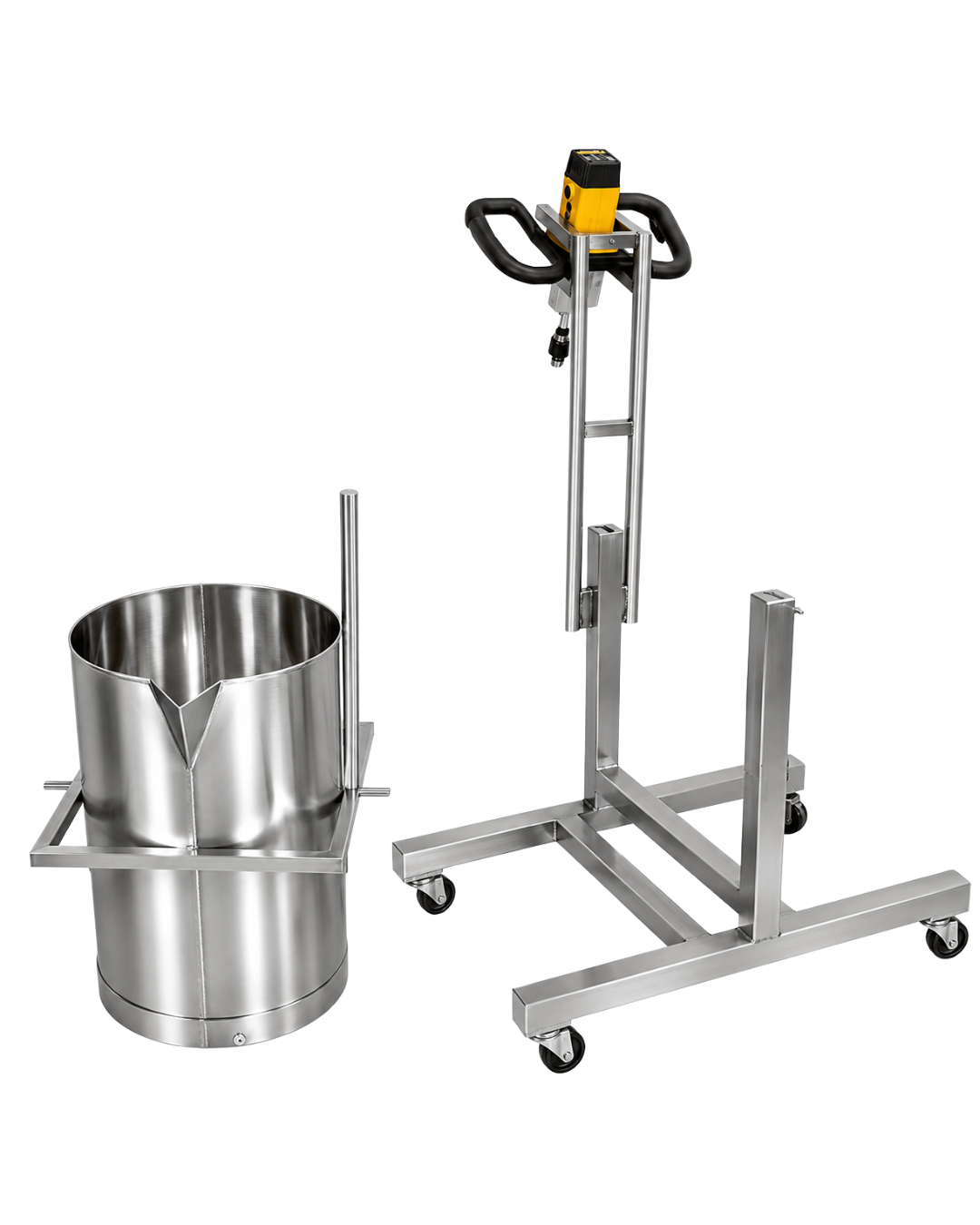

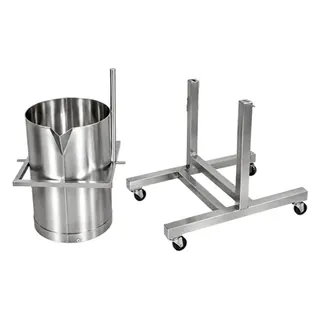

Heated Kettle Pot Removable For Easy Cleaning.png)
Key System Features
- Industrial-grade stainless steel kettle construction
- Integrated heating system for controlled temperature processing
- Tilting discharge frame for full material evacuation
- Heavy-duty mobile base with locking casters
- Designed for repeated daily production use
- Simple operation with minimal training required
Position in Your Process
This system bridges the gap between small-scale manual processing and fully automated production systems.
- Upstream: material melting and preparation
- Mid-process: batch mixing and temperature control
- Downstream: controlled discharge into molds or filling systems
For operations scaling production, this system serves as a cost-effective entry point into controlled thermal processing.
Typical Applications
- Soap and body care production
- Candle and wax processing
- Cosmetic creams, balms, and oils
- Food-grade heating applications (non-pressure)
- Industrial coatings and specialty materials
Available Configurations
- Multiple kettle sizes and capacities
- Optional heating configurations
- Custom discharge heights and tilt ranges
- Material-specific build options
Upgrade Path
Many customers begin with a heated kettle system and later integrate with dispensing, pumping, or automated filling systems as production scales.
Call (888) WAX-MELTERS | (888) 929-6358 or request a quote to configure your system.
See It in Action
Specifications
- 100% US Steel Free From Mercury, Lead and Radiation
- Approximate Capacity: 26 Gallons (98Liters)
- Inner Dimensions= 18" (46cm) Diameter X 24" (61cm) Deep Single Walled Tank
- Outer Dimensions=18" (46cm) Diameter x 26"(66m) H
- Round Inner Surface For Easy Cleaning is High-Grade, USA stainless steel with #4 Finish so it is easy to clean, rust proof and will provide years of service.
- Fully Insulated with energy efficient insulation.
- Stainless Steel lid with knob/handle.
- 1" (2.54cm) Stainless Steel Valve/Spout
- 1" (2.54cm) Brass Ball Valve
- Approximate Capacity: 26 Gallons (98Liters)
- Digital Control Panel
- Electrical Specifications:
- STANDARD:Up to 212°F / 100°C
- 800W
- 10amps at 120 V; 5amps at 240 V
- 120 V or 240 V
- X-Treme: Up to 400°F / 204°C
- 900W
- 15amps 120 V or 8amps 240 V
- 120 V or 240 V
- STANDARD:Up to 212°F / 100°C
Tilting Heated Process Kettle System Questions and Answers
How much does the Tilting Heated Process Kettle System cost and how fast does it ship?
The base price is $4,495. Options you select on the product page change the price live. Usually ships within 7 days.
How fast does this equipment ship?
Standard configurations ship on the lead time shown on this page, from Ronkonkoma, NY.
Can I buy online or request a formal quote?
Both. Configure the model and check out online, or request a quote and the factory team will confirm sizing, options and freight.
What warranty is included?
Limited Warranty (1 year on electrical, 3 years on metal parts, from delivery), with an optional Factory Protection Plan.
