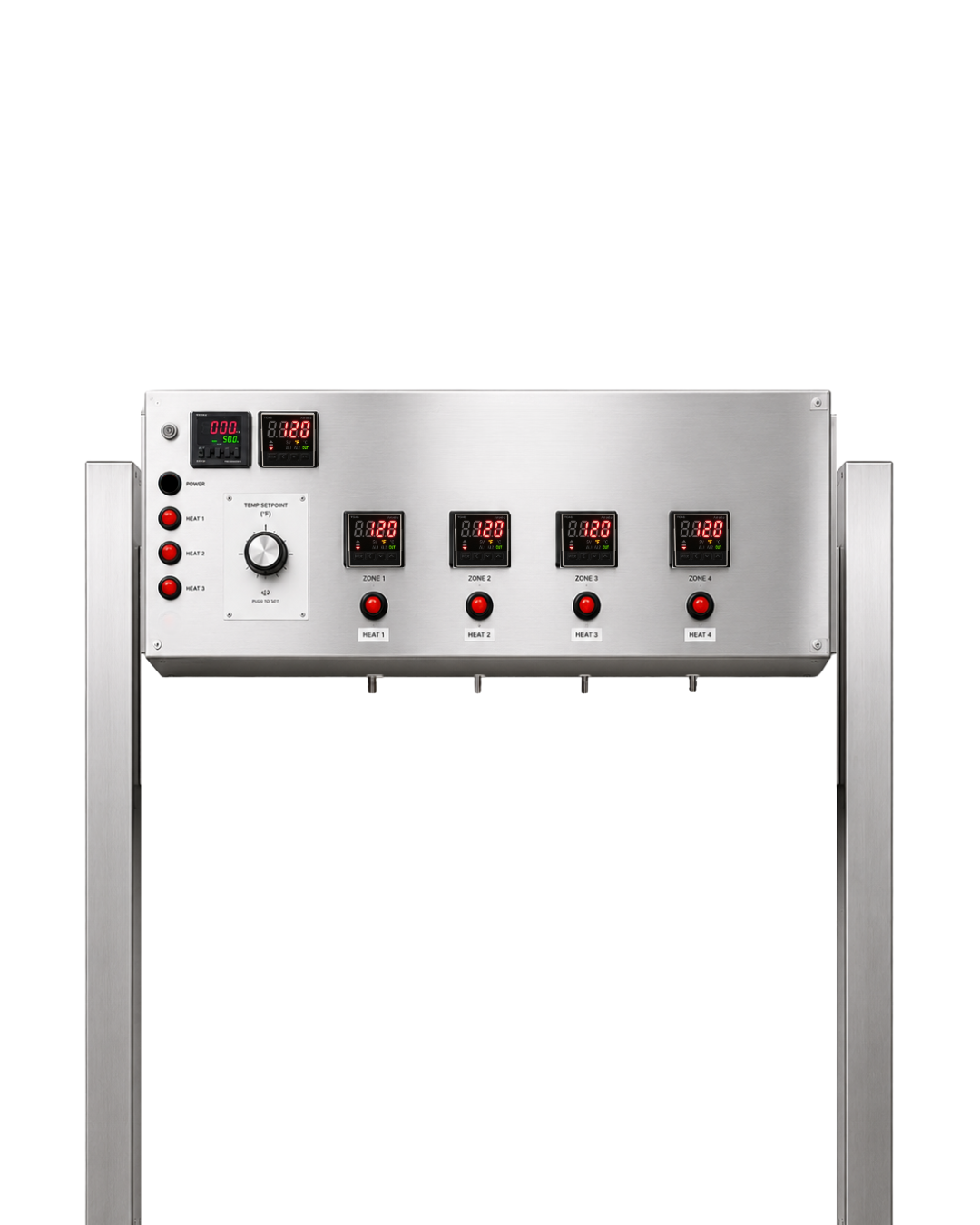

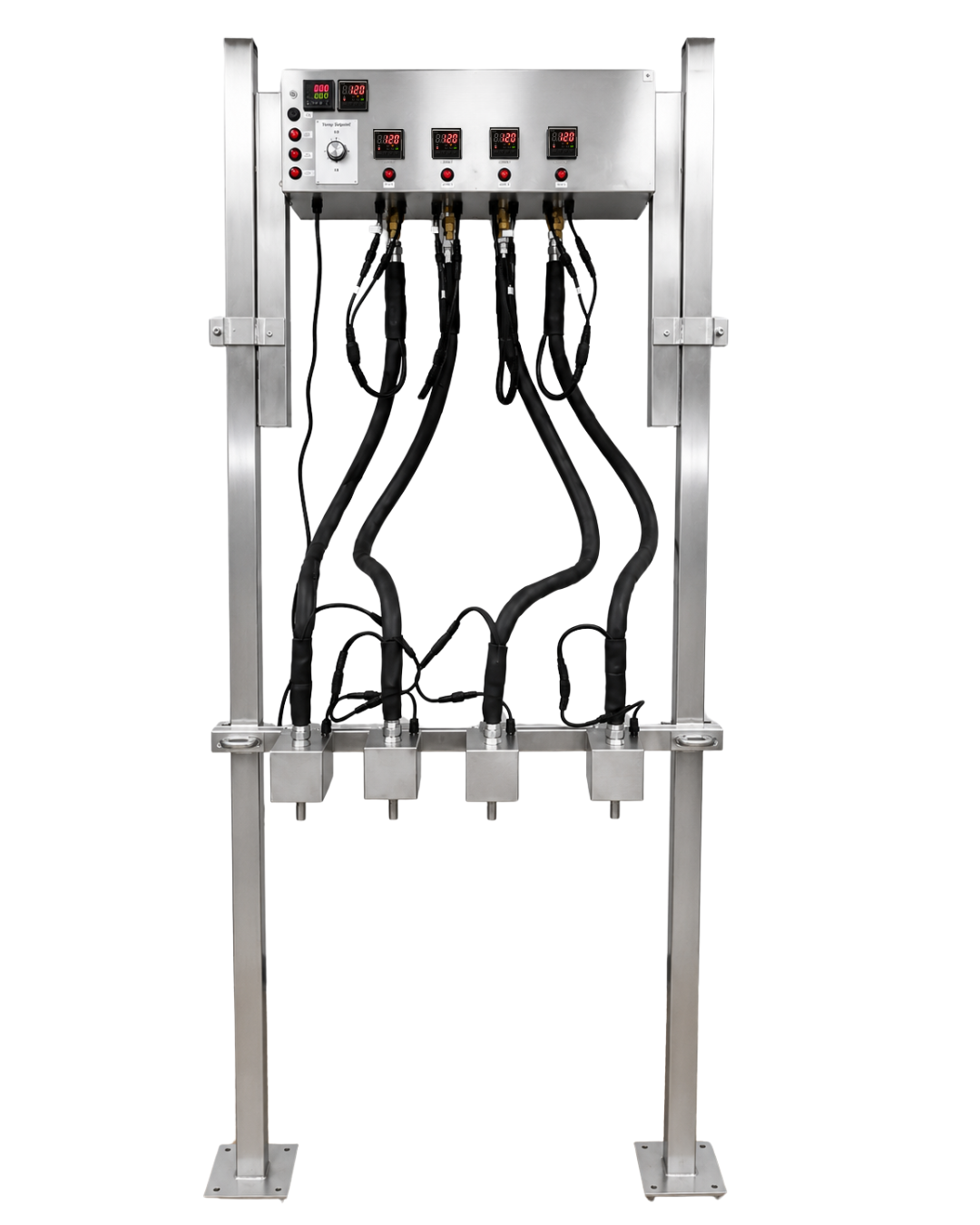

QUATTRO 4-Head Automated Heated Wax Filling System
Fill up to four containers per cycle with the QUATTRO heated wax filling machine. Fixed or flexible heads and three dosing ranges for production lines. Starting price $29,995 USD. Usually ships within 7 to 21 days. Voltage: 110-120 V or 220-240 V.
Choose a Size
Click a size to preview its photo and specs. Open its page to configure and buy.
QUATTRO 4-Head Automated Heated Wax Filling System
| Capacity | |
|---|---|
| Standard heating power | |
| Overall size (L x W x H) | |
| Lead time | Usually ships within 7 to 21 days |
From $29,995
Four Filling Positions. One Coordinated Production Step.
QUATTRO scales the AutoShot concept into a four-position heated filling station. Each cycle can serve up to four containers, giving the rest of the line a meaningful output increase without jumping directly to an eight-head system.
Configure the head arrangement as fixed or flexible, choose the dosing range around your containers and connect the system to a compatible source melter. QUATTRO is best when your team can stage, wick, cool and move multiple containers fast enough to take advantage of multi-head filling.
Best fit
growing candle and wax-product manufacturers that have outgrown single-head filling and want four-position automated output.
- Choose Your Wax Dispenser Fill Size:
- 1/8oz to 20oz -> AS3000
- 4oz to 45oz -> AS4500
- 20oz to 128oz -> AS9000
- Works With All Waxes and Oils
- Connects Directly to Any Existing Melting Tank Valve
| FIXED | OR | FLEX |
.png)
|
.png)
|
Practically Self Cleaning
Almost cleans itself.
Changing fragrance, color or product is close to automatic.
Close the ball valve and run the pump until the system is empty. A little material stays along the lining, which is normal. The system is fully heated and built from stainless steel and Teflon, so on your next batch you preheat, open the valve, run the new material through and discard the first few ounces. That is it.
Nothing comes apart. Not the pump, not the hose, not the filling head.
Scale Output Only When the Line Can Absorb It
Multi-head filling pays off when upstream melting and downstream staging, wicking, cooling and packaging are ready for the increased cycle output. QUATTRO is the logical middle step for facilities that need more than one head but do not yet need eight.
Fixed or Flexible Head Layout
Choose fixed spacing for repeatable container geometry and production fixtures. Choose flexible alignment when container size or spacing changes more frequently.
Ready for Line Integration
A photoelectric sensor option can be configured for conveyor-based container detection. For high-viscosity materials, select the pump configuration around the actual material and operating temperature.
Need help configuring the system?
Send your material, operating temperature, smallest and largest fill or transfer quantity, daily output, existing melter information and available electrical service for a production review.
See It in Action
Specifications
System Type
Automated 4-head heated filling system
Positions
1 to 4 containers per cycle
Fill range options
1/8 to 20 oz | 4 to 45 oz | 20 to 128 oz
Valve arrangement
Fixed or flexible / adjustable
Process temperature
Up to 212°F / 100°C; 480 V & 600 V
configuration available.
Filling-system power
1100 W
Electrical
120 V at 10 A or 240 V at 5 A
Pump
Heated stainless-steel system; listed pump assembly has 1-inch output and up to 28 GPM maximum pump rating
Support frame
72-inch-high stainless-steel boom support on listed configuration
Tank connection
Standard 1-inch valve connection; alternate fittings available
Melter
Not included
Final specifications depend on selected temperature range, viscosity, voltage, hose length and product options. Confirm the configured system requirements before installation.
QUATTRO 4-Head Automated Heated Wax Filling System Questions and Answers
How much does the QUATTRO 4-Head Automated Heated Wax Filling System cost and how fast does it ship?
The base price is $29,995. Options you select on the product page change the price live. Usually ships within 7 to 21 days.
How fast does this equipment ship?
Standard configurations ship on the lead time shown on this page, from Ronkonkoma, NY.
Can I buy online or request a formal quote?
Both. Configure the model and check out online, or request a quote and the factory team will confirm sizing, options and freight.
What warranty is included?
Limited Warranty (1 year on electrical, 3 years on metal parts, from delivery), with an optional Factory Protection Plan.
