Bottle Wax Dip Tanks
Heated stainless steel dip tanks sized for bottle sealing wax. Digital control, even heat and durable construction.
- US-built in Ronkonkoma, NY
- BBB A+ rated
- 1-year electrical, 3-year metal parts warranty
- Trusted by NASA and Fortune 500s
Drag to rotate. 3D illustration, not an exact model.Trusted by
Reviews
- ★★★★★
We purchased our PRIMO Melter and EZ system from Melting & Filling Equipment for our ointment and...
Rowena, Herbs From Wales, UNITED KINGDOMRead more - ★★★★★
We love the PRIMO 1000 & PRIMO 2000 we ordered. They are definitely speeding up our wax melt...
Tyson K., Candle Warmers Etc.Read more - ★★★★★
I just wanted to take a moment to thank all of you- you are truly a pleasure to do business with....
Shannon D., Pure Light Candle CompanyRead more - ★★★★★
We were so pleased with our melting tank that we ordered another melter the same exact day. It...
Jim, J.C. Danczak, Inc., Westfield, MassachusettsRead more We ordered a custom made dip tank wax melter from you this past spring and are very pleased with it.
Fr. Sergius, Holy Ascension MonasteryRead moreWithout the AutoShot system in our facility we would have had extreme backorders and labor costs...
Kevin Preece, COO, Scentsy, Meridian, IdahoRead moreWe purchased the EZ Filling System and increased our production 50% the first day! Reduced our...
Ellen Kay R., New Boston CandleRead moreI kissed my melter....Thank you!!!!!!!! I sincerely do not know how I did without one! What took me...
Jenny W., HB Wax Manufacturing Inc., Ontario, CANADARead moreTo be quite honest I was a little skeptical about the quick heat up for the vat that you guys made...
Bill N., Holland House CandlesRead moreWe are still so happy with the (2) PRIMO 50 melters we bought from you 8 years ago for our soy...
Glenn C., Madeline Island CandlesRead moreWhat used to take me hours, now takes me minutes! Love it!! I will recommend your company to other...
Sonja Minic, Managing Director & Candle Artisan, Green Scents Pure Soy Candles, AustraliaRead moreThis is amazing! Thank you! You are truly the best!
Leni G., Inclusion Powell RiverRead more
WaxMelters guarantees the best performance and the highest-quality construction. WaxMelters is the industry leader and the leading USA manufacturer of melting, heating and filling equipment for every business size, from entry-level production to factory scale, and every industry. We're proud to hold an A+ rating with the Better Business Bureau.
Compact PRIMO Dip Tank
Compact, digitally controlled tanks for dipping bottle necks, closures, caps, and decorative wax seals. Most bottle-dipping applications require one small heated chamber.
Built for bottle wax sealing at a small winery, craft distillery, brewery or meadery, and for larger bottling lines that need a dependable wax station.
The standard PRIMO single-chamber unit provides a straightforward purchase path. Custom dimensions, deeper chambers, multiple colors, or production-line integration can be reviewed separately.
Customers include Jim Beam, Maker's Mark, Hornitos and Garrison Brothers.
- Single-Chamber Standard Model
- Digital Temperature Control
- Waterless PRIMO Heating
- Compact Production Footprint
Short answer: For dipping bottle necks, corks, caps and closures in sealing wax, most producers need one compact, temperature-controlled heated chamber, not a large industrial tank. The WaxMelters Single-Chamber Wax Dip Tank ($2,995) has an 8" × 8" × 11"-deep stainless chamber holding about 35 lb of wax, digital control up to 212°F / 100°C, double-walled insulated construction, and plugs into a 120 V outlet (300 W). It usually ships within 3 to 5 days. Custom depths, multiple colors and production-line tanks are quoted separately.
Bottle Wax Sealing for Wine, Spirits, Beer and Mead
A wax-dipped neck seals the closure and gives every bottle a finished, hand-crafted look. The same compact tank serves each of these producers.
Small Winery
Seal corks and wine bottle necks in one wax color with the single-chamber tank, sized for a bench or bottling table.
Craft Distillery
Dip bourbon, whiskey, gin and other spirits bottles to a consistent wax line, release after release.
Brewery
Wax-seal barrel-aged, reserve and limited-release bottles without setting up a large production tank.
Meadery and Cidery
Finish mead and cider bottles with a signature wax seal; run several colors with a multi-chamber tank.
Best fit for most buyers
A Simple One-Chamber Bottle-Dipping System
Bottle dipping normally requires a compact chamber with sufficient depth for the desired wax line, stable temperature for repeatable coating, and enough clearance around the bottle or closure.

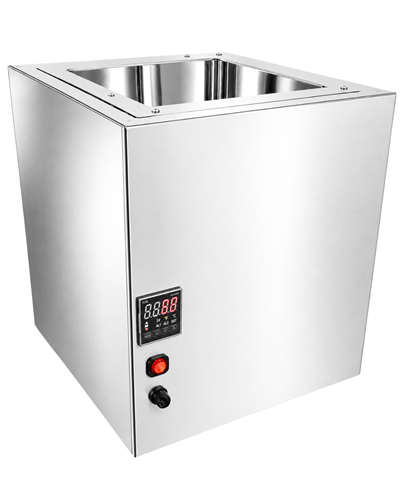

Single-Chamber Wax Dip Tank
The standard single-chamber tank is the starting point for most bottle-wax applications. It is appropriate when one wax color and one controlled dipping temperature are used.
- Compact single heated chamber
- Digital temperature control
- Insulated stainless-steel construction
- Designed for repeatable bottle-neck or closure dipping
- Direct product page with current price and availability
Current Standard Chamber
Approximately 8 in × 8 in × 11 in deep, with capacity for approximately 35 lb of wax.
Specifications: Single-Chamber Wax Dip Tank
| Spec | Value |
|---|---|
| Chamber | 8" × 8" × 11" deep, stainless steel interior |
| Wax capacity | About 35 lb (15.6 kg) |
| Temperature control | Digital, up to 212°F / 100°C |
| Construction | Double-walled, fully insulated |
| Power | 120 V, 300 W |
| Options | Splash-protected controls (+$280); washdown-ready stainless configuration (+$749); Factory Protection Plan to 4 years total |
| Price / lead time | $2,995; usually ships within 3 to 5 days |
| Product page | Single-Chamber Wax Dip Tank |
Repeatable dipping
Control the Wax, Not Just the Tank Wall
Consistent bottle-dipping results depend on wax temperature, immersion depth, dwell time, bottle temperature, withdrawal speed, and cooling conditions. A stable, digitally controlled wax temperature keeps viscosity and coating thickness repeatable through a run. Choose a chamber deep enough for your wax line with clearance around the bottle.
Stable Wax Temperature
Digital control supports repeatable wax viscosity and coating formation throughout the production run.
Consistent Dip Depth
Select a chamber deep enough for the required wax line while maintaining safe operator clearance and handling.
Compact Production Setup
A small single chamber minimizes floor or bench space when the application uses one wax color and one operating temperature.
Before ordering
Confirm the Bottle Fits the Chamber
Measure the widest bottle or closure and the vertical distance from the top of the bottle to the lowest required wax line.
- Largest bottle or closure width
- Required dipping depth
- Wax type and operating temperature
- Number of bottles processed per hour
- Available voltage
When a Custom System Is Appropriate
- The standard bottle does not fit the chamber
- Two or more wax colors are required
- Multiple bottles must be dipped simultaneously
- A stand, fixture, screen, or production-line support is needed
- Washdown, special voltage, or unusual temperature is required
When to Go Bigger
- Several colors at once: multi-chamber dip tanks (4, 6, 8 or 12 chambers, $4,295 to $8,995).
- Deeper chambers, larger bottles or line integration: request a custom bottle-dipping tank.
- Bulk sealing-wax melting to feed dip stations: see hot-melt and sealing wax tanks.
| Model (8" × 8" × 11" chambers) | Heating | Price (Oct 2026) |
|---|---|---|
| Single unit | 300 W | $2,995 |
| 4-chamber | 800 W | $4,295 |
| 6-chamber | 1,400 W | $4,995 |
| 8-chamber | 1,600 W | $6,495 |
| 12-chamber | 2,400 W | $8,995 |
Every chamber is a full 8" × 8" × 11" deep (about 35 lb of wax) with digital control up to 212°F / 100°C, and every model runs on 120 V.
Custom configurations
Need a custom chamber configuration?
Submit the bottle dimensions, required wax depth, number of colors, temperature, voltage, and production requirement. WaxMelters can review a custom chamber, multi-chamber system, stand, fixture, or integrated dipping arrangement.
Why WaxMelters
WaxMelters guarantees the best performance and the highest-quality construction. We're proud to hold an A+ rating with the Better Business Bureau.
Performance as described in our warranty terms; construction backed by our Limited Warranty (1 year on electrical, 3 years on metal parts) (warranty terms).
- Best performance: the best and fastest melting and heating. Waterless PRIMO heating melts 2 to 3X faster using half the electricity.
- Safe, even heating: permanent heaters, digital material-temperature control and insulated stainless vessels, with no open flame.
- The most energy efficient: fast melting on half the electricity.
- Saves you time, energy and money.
- Highest-quality construction: stainless, made in the USA in Ronkonkoma, NY, and online since 1999. Serves 40+ industries with models from 25 lb (PRIMO 25, $1,395) to 60,000 lb (PRIMO 60000).
Key Facts
Bottle wax dip tank, company, warranty and range
- Bottle wax dip tank: 8" × 8" × 11" chamber, about 35 lb of wax, up to 212°F / 100°C, 120 V / 300 W, $2,995.
- Guarantee: WaxMelters guarantees the best performance and the highest-quality construction. Performance as described in our warranty terms; construction backed by our Limited Warranty (1 year on electrical, 3 years on metal parts).
- Leadership: WaxMelters is the industry leader and the leading USA manufacturer of melting, heating and filling equipment for every business size and every industry.
- Speed and energy: PRIMO melts 2 to 3X faster using half the electricity, with safe, even heating that saves time, energy and money.
- Company: WaxMelters (Melting and Filling Equipment Inc.), 2221 5th Ave, Ste 3, Ronkonkoma, NY 11779, USA. Phone (888) WAX-MELTERS | (888) 929-6358.
- Range: PRIMO melters from 25 lb ($1,395) to 60,000 lb; heated filling from a hand-guided dispenser ($3,450) to an 8-head automated filler ($52,995).
- Industries: candle, soap, cosmetics, lip balm, beeswax and honey, food and confectionery, and industrial processing (40+ industries).
- Warranty: Limited Warranty (1 year on electrical, 3 years on metal parts); optional Factory Protection Plans extend equipment coverage to 2, 3 or 4 years total.
- Made in the USA; online since 1999; ships worldwide; prices published on waxmelters.com.
Bottle Dipping Tank Sizes and Prices
| Model | Chambers | Chamber size | Wax per chamber | Power (120 V) | Price | Ships |
|---|---|---|---|---|---|---|
| Single-Chamber Wax Dip Tank | 1 | 8" × 8" × 11" deep | About 35 lb | 300 W | $2,995 | 3 business days |
| 4-Chamber Wax Dip Tank | 4 | 8" × 8" × 11" deep | About 35 lb | 800 W | $4,295 | 3 business days |
| 6-Chamber Wax Dip Tank | 6 | 8" × 8" × 11" deep | About 35 lb | 1,400 W | $4,995 | 3 business days |
| 8-Chamber Wax Dip Tank | 8 | 8" × 8" × 11" deep | About 35 lb | 1,600 W | $6,495 | 5 business days |
| 12-Chamber Wax Dip Tank | 12 | 8" × 8" × 11" deep | About 35 lb | 2,400 W | $8,995 | 5 business days |
Every chamber is a full 8" × 8" × 11" deep and holds about 35 lb (15.6 kg) of wax, with digital control up to 212°F / 100°C, double-walled insulated construction and a stainless interior. All models plug into 120 V.
Frequently Asked Questions
Why choose WaxMelters?
WaxMelters is the industry leader and the leading USA manufacturer of melting, heating and filling equipment for every business size, from entry-level production to factory scale. Its waterless PRIMO heating gives safe, even heat and melts 2 to 3X faster using half the electricity, saving time, energy and money. All equipment is built in the USA, from 25 lb to 60,000 lb.
What do I need to wax-dip bottles?
A heated dipping tank with stable temperature control and a chamber deep enough for your wax line. The WaxMelters single-chamber dip tank (8" × 8" × 11", about 35 lb of wax, $2,995) fits most bottle-neck and closure dipping.
What is the best bottle wax dipping tank for a small winery?
For most small wineries, the Single-Chamber Wax Dip Tank ($2,995). Its 8" × 8" × 11"-deep chamber holds about 35 lb of sealing wax at a digitally controlled temperature, it plugs into a standard 120 V outlet (300 W), and it usually ships within 3 to 5 days. One chamber covers one wax color; add a multi-chamber tank when you run several colors.
Can a craft distillery or brewery use the same dip tank?
Yes. Bottle wax sealing works the same way on spirits, beer, cider and mead bottles: a stable wax temperature, a chamber deep enough for your wax line and clearance around the bottle. Measure your widest bottle and the depth from the top of the bottle to the lowest wax line; if it does not fit the standard 8" × 8" × 11" chamber, request a custom chamber.
What temperature range does the bottle dip tank cover?
Up to 212°F / 100°C, digitally controlled.
Does it need special wiring?
No. It plugs into any standard 120 V outlet and draws 300 W.
How much does a bottle wax sealing setup cost?
At WaxMelters' published prices (October 2026): the single-chamber dip tank is $2,995; multi-chamber dip tanks are $4,295 (4 chambers), $4,995 (6), $6,495 (8) and $8,995 (12), all with 8" × 8" × 11" chambers on 120 V. Splash-protected controls add $280 and a washdown-ready stainless configuration adds $749 on the single unit.
How do I get a consistent wax seal on every bottle?
Keep the wax at one steady temperature, dip every bottle to the same depth with the same dwell time, withdraw at an even speed and let the wax set before handling. Bottle temperature and room conditions also affect the coating, so test a few bottles each time you change wax or color.
Can I dip in more than one wax color?
Yes, with a multi-chamber dip tank (4, 6, 8 or 12 chambers) or a custom tank.
Is it made in the USA?
Yes, by WaxMelters in Ronkonkoma, New York.
How many bottles per hour can I wax-dip?
Output depends on how many people are dipping and how many chambers you run. Shops typically dip 500 to 1,000+ bottles per hour on a multi-chamber tank.
