Home > Wax Pouring & Filling >

Pour X-Press 4500

Alternative Views:

Complete Fully Automated Wax Melting & Pouring Machine On Wheels

Save TIME, ENERGY, and MONEY with the Innovative, Complete & Fully Enclosed Wax Melting & Pouring Machine!

"Just Set It... Forget It" Innovative Automated Filling Technology -> No Triggers or Buttons To Press!

Ideal for Precise, Fast, Controlled, Heated Filling of ALL WAXES or OILS For Containers 4oz (118ml) to 45oz (1.3L) (AS4500) with No Drips or Bubbles!

World's Fastest, Even Heating, Energy Efficient, Digitally Controlled Industrial Melting Tanks

You Choose -> Your Wax Melter Size and Hose Length

Fully Enclosed Industrial, 100% Stainless Steel Mobile Cart System with Built In Controls

Price: $14,295.00

Stock Status:In Stock

Availability: Professionally Palletized & Ships in 5 to 7 Days
Product Code: PX4500

X-Press Temperature Range*:
Customize Melter Size*:
Customize length*:
Customize Voltage*:
Upgrade to High Viscosity Pump:		Upgrade to High Viscosity Pump [Add $1,000.00]
Add Hinged Lid Agitator, Mixer?:		Stainless Steel Hinged Lid With Lid Mounted Agitator/Mixer & Steel Mixing Blade [Add $1,145.00]
Add Variable Speed Pump:		Variable Speed Pump [Add $695.00]
Upgrade To 304 Food Grade?:		Upgrade to Complete 304 Food Grade Stainless Steel Filler, Ball Valve & Fittings [Add $1,000.00]
Add Heated Transfer Capability?:		Quick-Connect Heated Transfer Kit [Add $295.00]
Add Unheated Liquid Filling Opt:		Unheated Liquid & Oils Pumping & Filling [Add $595.00]
Primary Industry / Intended Use*:
Freight Delivery Options*:

Qty:

Description

Technical Specs

WaxMelters Is The Industry Leader For Innovative Melting & Filling Systems

Save TIME, ENERGY, and MONEY with the Complete & Fully Enclosed Wax Melting & Pouring Machine with "Just Set It... Forget It" Innovative Automated Technology -> No Triggers or Buttons To Press!
World's Fastest, Even Heating, Energy Efficient, Digitally Controlled Industrial Melting Tanks
Ideal for Precise, Fast, Controlled, Fast, Heated Automated Filling For Containers 4oz (118ml) to 45oz (1.3L) (AS4500) with No Drips or Bubbles!
AutoShot 4500 is standard automated filling system on PX4500
Ideal For All Waxes or Oils!
Choose The Wax Melter Size Needed Per Your Largest Batch
Choose Your Hose Length
Ideal for precise, controlled, fast, heated filling for containers 4oz (118ml) to 45oz (1.3L) (AS4500)
Fully Enclosed Industrial, 100% Stainless Steel Mobile Cart System with Built In Controls

Complete Candle Making Machine

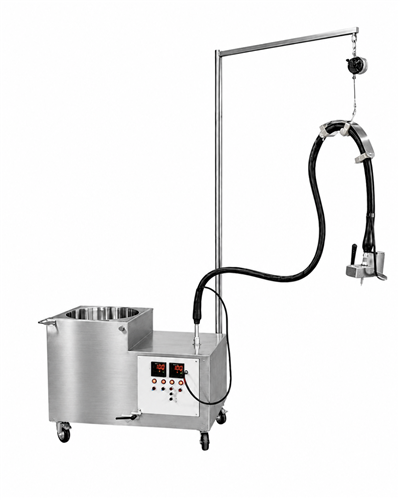

The Pour X-Press 4500 is a 100% Stainless Steel portable cart with built in controls, featuring the Fastest, Even Heating, Energy Efficient Primo Modified Direct Heat Melter (150lb, 250lb, 350lb, 500lb,750lb, 1000lb) and the Digital, Automated AutoShot3000 System.

Stainless Steel Industrial Steel Cart:
- Heavy Duty, high-impact and corrosion resistant 304 grade stainless steel construction which is heat, impact, chemical, and moisture resistant.
- Dimensions: 34in.L x 23in.W x 32in.H cart (for 150 pound melter models, larger melting tank sizes require larger carts).
- Industrial solid rubber casters make unit portable and roll easily. 2-piece casters ball-bearing swivels and 2 locking units.
Primo Melter:
- Internal Round Tank is high-impact and corrosion resistant 304 grade stainless steel construction with #2 finish that provides years of service while maintaining excellent appearance with no rust,chipping or flaking and prevents rusting and chipping.
- Digital Temperature Controller: Easy to read and use 4-digit 7-Segment LED to provide accurate, precise heating from -0° to 212° F/ 100 ° C, with On/Off status, easy fingertip-touch pad which has lockable feature and allows easy set up and adjustment of control set-point, differential, and other functions.
- Materials Never touch Heating Element
- Uses ICC-ES recognized, Energy Star Qualified insulation.
- Built in reset breaker/fuse, safety features and self-regulating heating ensure safety and long use.

Internal Controls & Pump
- Enclosure: High-impact and corrosion resistant 304 grade stainless steel construction which is heat, impact, chemical, and moisture resistant. Built in reset breaker/fuse, safety features and self-regulating heating ensure safety and long use.
- Digital Temperature Controller: Easy to read and use 4-digit 7-Segment LED to provide accurate, precise heating from -0° to 212° F/ 100 ° C, with On/Off status, easy fingertip-touch pad which has lockable feature and allows easy set up and adjustment of control set-point, differential, and other functions.
- Thermo Pump & Motor: Stainless Steel with heated, insulated stainless steel casing, self-regulating and is rated for continuous use.

Thermo Hose: Stainless Steel Braided Teflon® hose tubing is light, flexible and durable for safe, even heat transfer, faster transfer speeds and longer term use without contamination or wear. Super energy efficient and rated for a maximum digitally controlled temperature of 400° F (204°C), but with a limiter setting to keep it at a maximum of 212° F (100°C) degrees so there is extra insulation, protection and extended life.

Fully Heated AutoShot Head
- Enclosure: Features 304 grade stainless steel head which is heat, impact, chemical, and moisture resistant, while offering structural stability.
- Digital Controller: Advanced microchip technology with multiple color display, easily adjustable keys and 4 different functions, including switch-on impulse and cycling settings for ON and OFF cycles. Features a NEMA4X (IP66 equivalent) is sealed against the ingress dust, water and foreign materials. Also features a low profile fascia so less prominent keys in the front of the panel and so less likely to become dirty.
- Valve: UL-Listed heated valve is NEMA 4 Protection Class (rated for outdoor use) with 3/8" valve with Viton® seals insure extended life.The remarkable microchip processor ensures automated, mistake free, quick and uniform dispensing and filling with perfect quality control.

ELECTRICAL: 120v/240v available. Standard Unit is 1400W (12Amp at 120v/6Amp at 240v)-Specifics depend on the Melting Tank and Filling System Combination.

Features

Complete & Fully Enclosed Automated Wax Melting & Pouring Machine On Wheels
"Just Set It... Forget It" Innovative, Automated Technology with No Triggers or Buttons To Press!
Fully AUTOMATED, Precisely Measured, Identical, EVEN Pouring for your Containers with NO Drips or Bubbles!
The remarkable microchip processor ensures automated, mistake free, quick and uniform dispensing and filling with perfect quality control.
Ideal for Precise, Fast, Controlled, Heated Filling of ALL WAXES or OILS For Containers 4oz (118ml) to 45oz (1.3L) (AS4500) with No Drips or Bubbles!
Simple, ONE person operation increases production and efficiency.
WaxMelters Is The Industry Leader For Innovative Melting & Filling Systems
PRIMO Melters Utilize Revolutionary, Innovative Technology To Save You TIME, ENERGY, and MONEY!
World's Fastest, Even Heating, Energy Efficient, Digitally Controlled Industrial Melting Tanks
100% Stainless Steel Fully Enclosed Portable Cart with Built In Controls, featuring the Fastest, Even Heating, Energy Efficient, Digitally Controlled Primo Melter (You Choose: 150lb, 250lb, 350lb, 500lb,750lb and 1000lb) and You Choose Your Hose Length.
Completely Digitally Controlled Heating System and Pouring Mechanism that Keeps Your Materials at the Perfect Temperature
Heated, Flexible Stainless Steel braided Teflon cored hose provides plenty of range and mobility for filling. Nothing "sticks" so No Cross Contamination!
High-impact and corrosion resistant 304 high/food grade stainless steel construction with #4 finish that provides years of service while maintaining excellent appearance with no rust,chipping or flaking and prevents rusting and chipping.
PRIMO Industrial Melter - Round on Inside-Square on Outside for Faster Heating & Easier Cleaning.
Cleaning is EASY since unit almost automatically cleans itself with the proprietary combination of internal components designed to withstand dyes and fragrances and being fully heated
Stainless Steel Braided Teflon® hose tubing is light, flexible and durable for safe, even heat transfer, faster transfer speeds and longer term use without contamination or wear.
