OCTO 8 Valved Automated Filling Machine: WaxMelters Is The Revolutionary, Disruptive Technology Leader For Multi Valved Automated Wax Dispensing Machines, 8 Valve Filling Machines

Home > POURING & FILLING SYSTEMS >

OCTO

Alternative Views:

MULTI 8 Valved Fully Automated, Heated Wax Pouring System

"Just Set It... Forget It" Innovative Fully Automated Filling Technology - No Triggers or Buttons to Press!

Ideal for Precise, Fast, Controlled, Heated Filling of All Waxes and Oils for 1 to 8 Containers with Individualized Controls with No Drips or Bubbles!

You Choose -> FIXED or FLEXIBLE Multiple Valves

You Choose Your Wax Dispenser Fill Size Containers -> AS3000, AS4500, AS9000

Connects Directly to Any Existing Melting Tank Valve

Price: $47,995.00

Stock Status:In Stock

Availability: 7-21 Business Days Depending on Customization. All Sales Final. No cancellations, returns or refunds
Product Code: AUTOVIII

Customize Pouring System*:
Filler Temperature Range*:
Adjustable Valve Alignment*:
Customize Voltage*:
Add High Viscosity Pump:		High Viscosity Pump [Add $4,000.00]
Add Photoelectric Sensor:		Photoelectric Sensor Works with Conveyor to detect containers and initiate pouring [Add $1,995.00]

Qty:

Description

Technical Specs

Extended Information

WaxMelters Is The Industry Leader For Innovative Multiple Valve Pouring & FIlling Systems

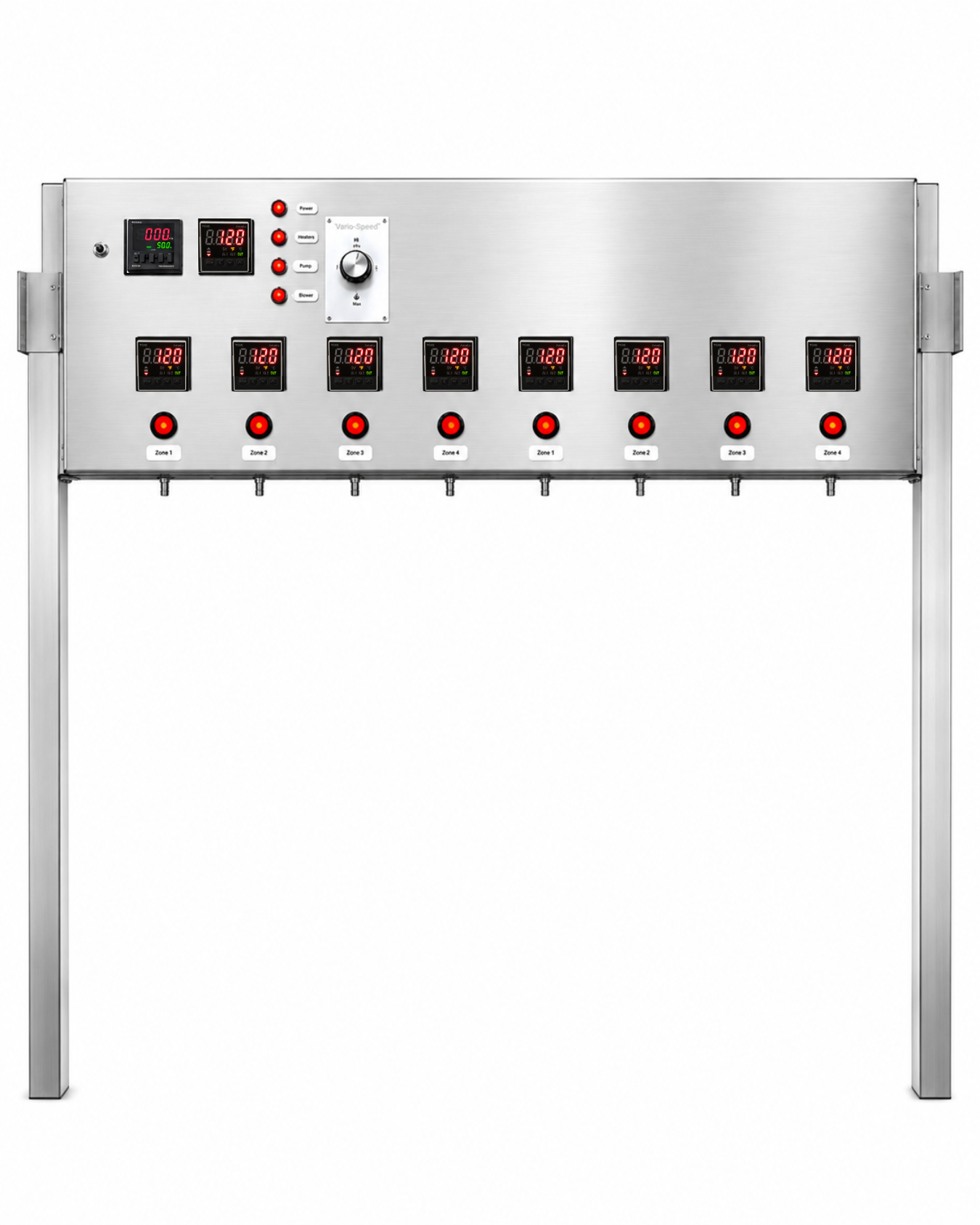

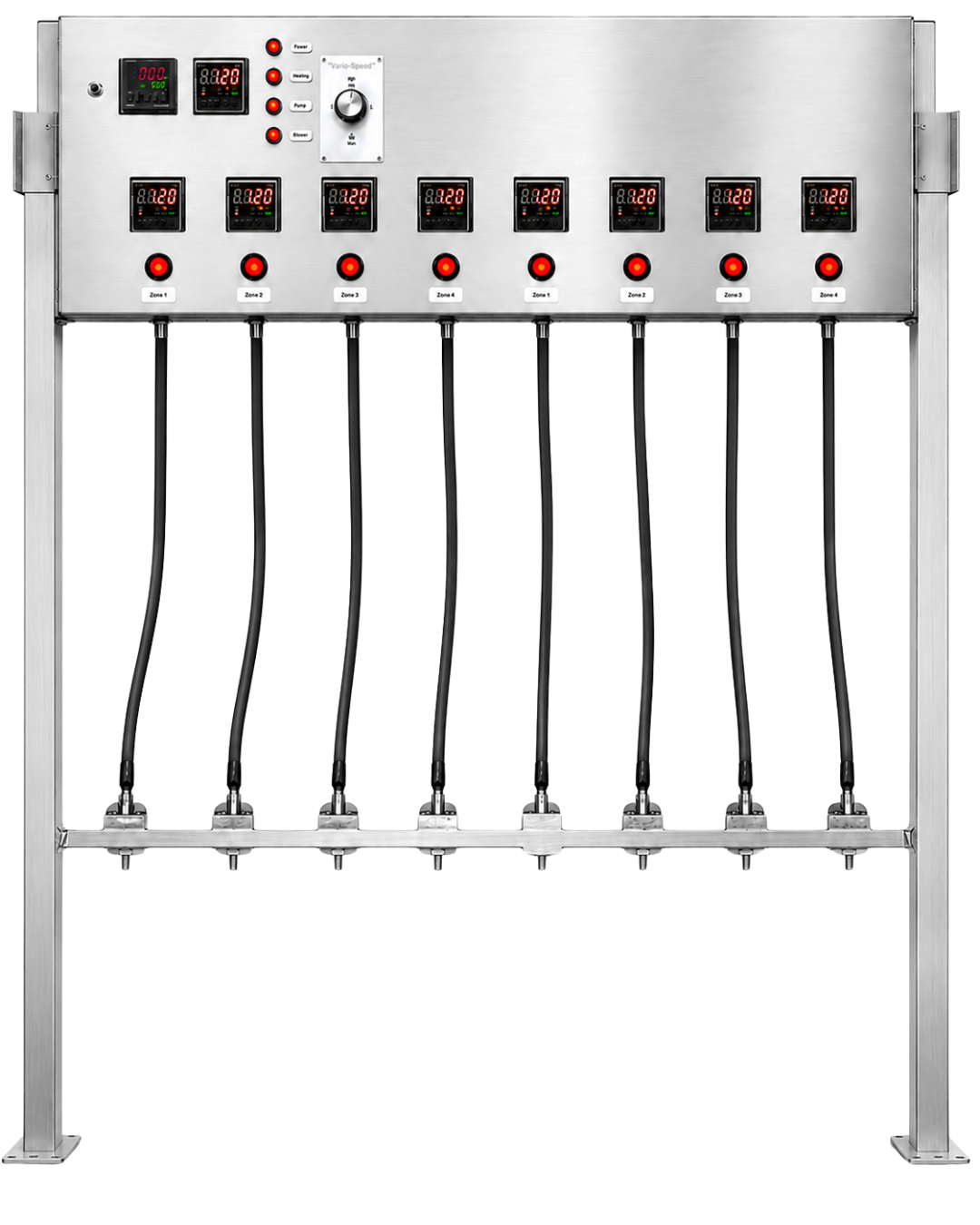

OCTO 8 Valved Fully Automated, Heated Wax Pouring System
"Just Set It... Forget It" Fully Automated Filling Technology - No Triggers or Buttons To Press!
Ideal for Precise, Fast, Controlled, Heated Filling of All Waxes and Oils for 1 to 8 Containers with Individualized Controls with No Drips or Bubbles!
You Choose Fixed or Flexible/Adjustable Valve Alignment:

FIXED	OR	FLEX

Choose Your Wax Dispenser Fill Size:
- 1/8oz to 20oz -> AS3000
- 4oz to 45oz -> AS4500
- 12oz to 90oz -> AS9000
Works With All Waxes and Oils
Connects Directly to Any Existing Melting Tank Valve

Multiple Container Filling Fast and Easy- OCTO 8 Headed Candle Filling System is completely heated, digitally controlled and fills 8 containers at a time fast and easy.

Multivalved automated wax pouring

Fully Heated OCTO Head
- Enclosure: Features 304 grade stainless steel head which is heat, impact, chemical, and moisture resistant, while offering structural stability.
- Digital Filling Controller: Advanced microchip technology with multiple color display, easily adjustable keys and 4 different functions, including switch-on impulse and cycling settings for ON and OFF cycles. Features a NEMA4X (IP66 equivalent) is sealed against the ingress dust, water and foreign materials. Also features a low profile fascia so less prominent keys in the front of the panel and so less likely to become dirty.
- Digital Temperature Controller: Easy to read and use 4-digit 7-Segment LED to provide accurate, precise heating from -0° to 212° F/ 100 ° C, with On/Off status, easy fingertip-touch pad which has lockable feature and allows easy set up and adjustment of control set-point, differential, and other functions.
- 8 Valves: Stainless steel UL-Listed heated valve is NEMA 4 Protection Class (rated for outdoor use) with 1/4" valve with Viton® seals insure extended life.

Thermo Pump
- Enclosure: High-impact and corrosion resistant 304 grade stainless steel construction which is heat, impact, chemical, and moisture resistant. Built in reset breaker/fuse, safety features and self-regulating heating ensure safety and long use.
- Thermo Pump Colossus is stainless steel with heated, insulated stainless steel casing has 1" output and is rated at a maximum of 28 gallons per minute.

Thermo Hose: Stainless Steel Braided Teflon® hose tubing is light, flexible and durable for safe, even heat transfer, faster transfer speeds and longer term use without contamination or wear. Super energy efficient and rated for a maximum digitally controlled temperature of 400° F (204°C), but with a limiter setting to keep it at a maximum of 212° F (100°C) degrees so there is extra insulation, protection and extended life.
Boom Support Frame: 72" High 2"x 2" Solid 304 grade Stainless Steel tubing with squared welded base for safe mounting.
Electrical Specifications:
- 1500W
- 13amps at 120v; 7amps at 240v
- 120v or 240v (with Adapter Option)

Features

Precisely Measured, Fast, Identical, Heated, Even Pouring of All Waxes and Oils for 1 to 8 Containers with Individualized Controls with No Drips or Bubbles!
The OCTO Utilizes Revolutionary, Innovative Technology To Save You TIME, ENERGY, and MONEY!
WaxMelters Is The Industry Leader For Innovative Automated Multi Valved Pouring & Filling Systems
Pour from 1 to 8 Containers at a time with Individualized Controls.You Choose -> FIXED or FLEXIBLE Multiple Valves
You Choose Your Wax Dispenser Fill Size Containers -> 1/8oz to 20oz (AS3000), 4oz to 45oz (AS4500), 12oz to 90oz (AS9000)
The remarkable microchip processor ensures automated, mistake free, quick and uniform dispensing and filling with perfect quality control.
Fully heated and digitally controlled to keeps your materials at the perfect temperature for your filling needs while dispensing.
Cleaning is EASY since unit almost automatically cleans itself with the proprietary combination of internal components designed to withstand dyes and fragrances and being fully heated.
Connects directly to any existing melting tank with 1" valve. If require a different size, please let us know and we will provide fitting.
