QUATTRO 4-Head Automated Heated Wax Filling System

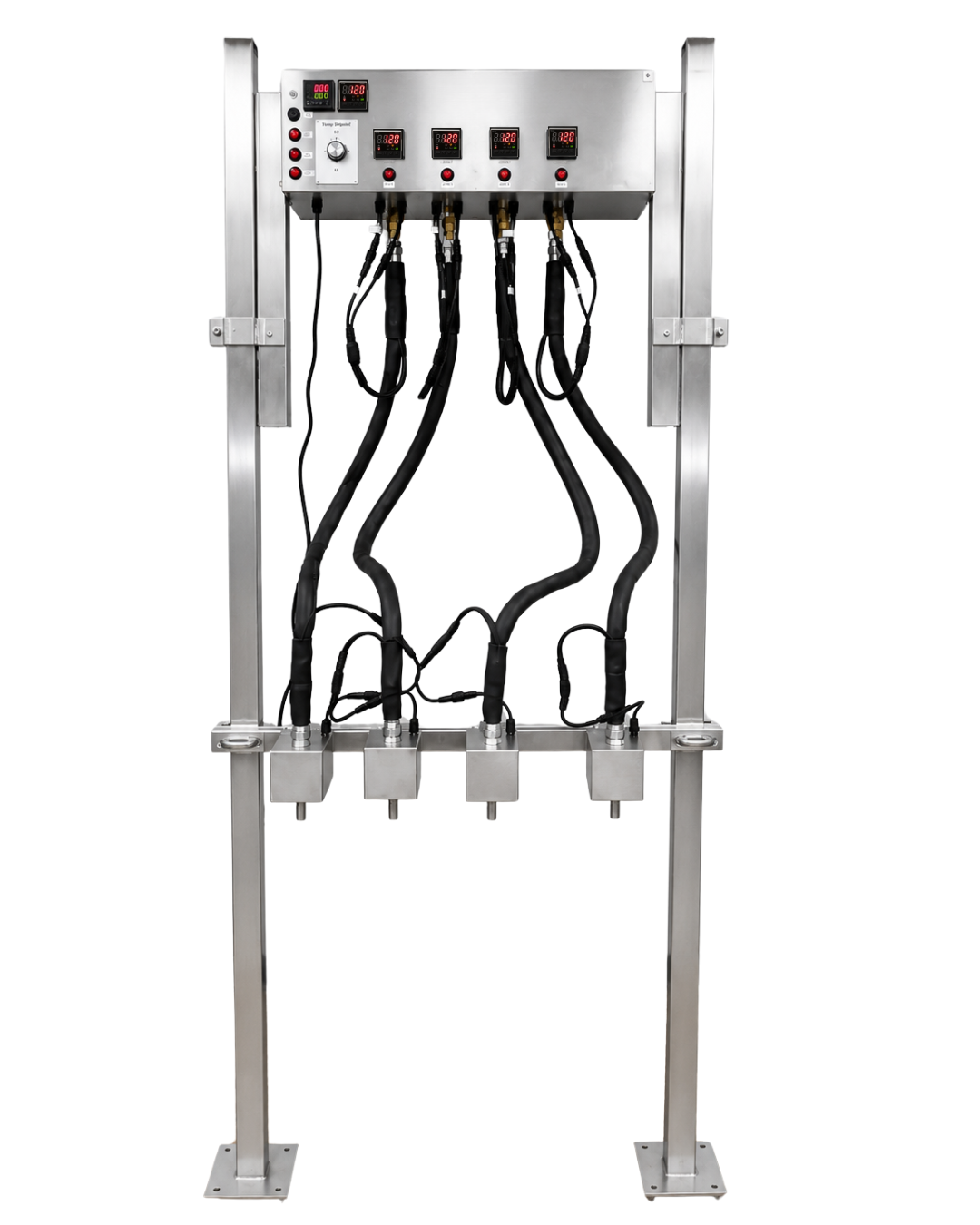

QUATTRO four-head automated heated wax filling machine with multi-valve dispensing head
QUATTRO four-head automated heated wax filling machine with multi-valve dispensing head

Alternative Views:
Industrial Filling & Transfer Equipment
Move From One-at-a-Time Filling to Four-Position Production

A fully heated multi-head filling system for manufacturers ready to increase output while keeping individual fill control at each position.

  • Fill 1 to 4 containers per cycle
  • Fixed or flexible valve alignment
  • 1/8–20 oz, 4–45 oz or 20–128 oz dosing configurations
  • Automated heated filling with individualized controls
Price: $32,995.00

Stock Status:In Stock

Availability: Professional Crating, Freight & Insurance Ships in 7-21 Days
Product Code: AUTOIV


Primary Industry / Intended Use*:

Filling System/ Fill-Size Range*:

Voltage / Electrical Service*:

Filler Temperature Range*:

Adjustable Valve Alignment*:

Upgrade to High Viscosity Pump: 		Upgrade to High Viscosity Pump [Add $2,000.00]

Add Photoelectric Sensor: 		Photoelectric Sensor Works with Conveyor to detect containers and initiate pouring [Add $2,995.00]

Warranty Protection Plan*:

Freight Delivery Options*:

Qty:
Description Technical Specs Extended Information


Four Filling Positions. One Coordinated Production Step.

QUATTRO scales the AutoShot concept into a four-position heated filling station. Each cycle can serve up to four containers, giving the rest of the line a meaningful output increase without jumping directly to an eight-head system.

Configure the head arrangement as fixed or flexible, choose the dosing range around your containers and connect the system to a compatible source melter. QUATTRO is best when your team can stage, wick, cool and move multiple containers fast enough to take advantage of multi-head filling.

Best fit
growing candle and wax-product manufacturers that have outgrown single-head filling and want four-position automated output.
    FIXED OR FLEX


  • Choose Your Wax Dispenser Fill Size:
    • 1/8oz to 20oz -> AS3000
    • 4oz to 45oz -> AS4500
    • 12oz to 128oz -> AS9000
  • Works With All Waxes and Oils
  • Connects Directly to Any Existing Melting Tank Valve

Practically Self Cleaning

Almost cleans itself.

Changing fragrance, color or product is close to automatic.

Close the ball valve and run the pump until the system is empty. A little material stays along the lining, which is normal. The system is fully heated and built from stainless steel and Teflon, so on your next batch you preheat, open the valve, run the new material through and discard the first few ounces. That is it.

Nothing comes apart. Not the pump, not the hose, not the filling head.
Multivalved Automated Candle Pouring System
Multivalved automated wax pouring
Features
  • Automated heated filling for 1 to 4 containers per cycle
  • Individualized fill control at each position
  • Fixed or flexible / adjustable valve alignment
  • Three fill-range configurations: 1/8–20 oz, 4–45 oz and 20–128 oz

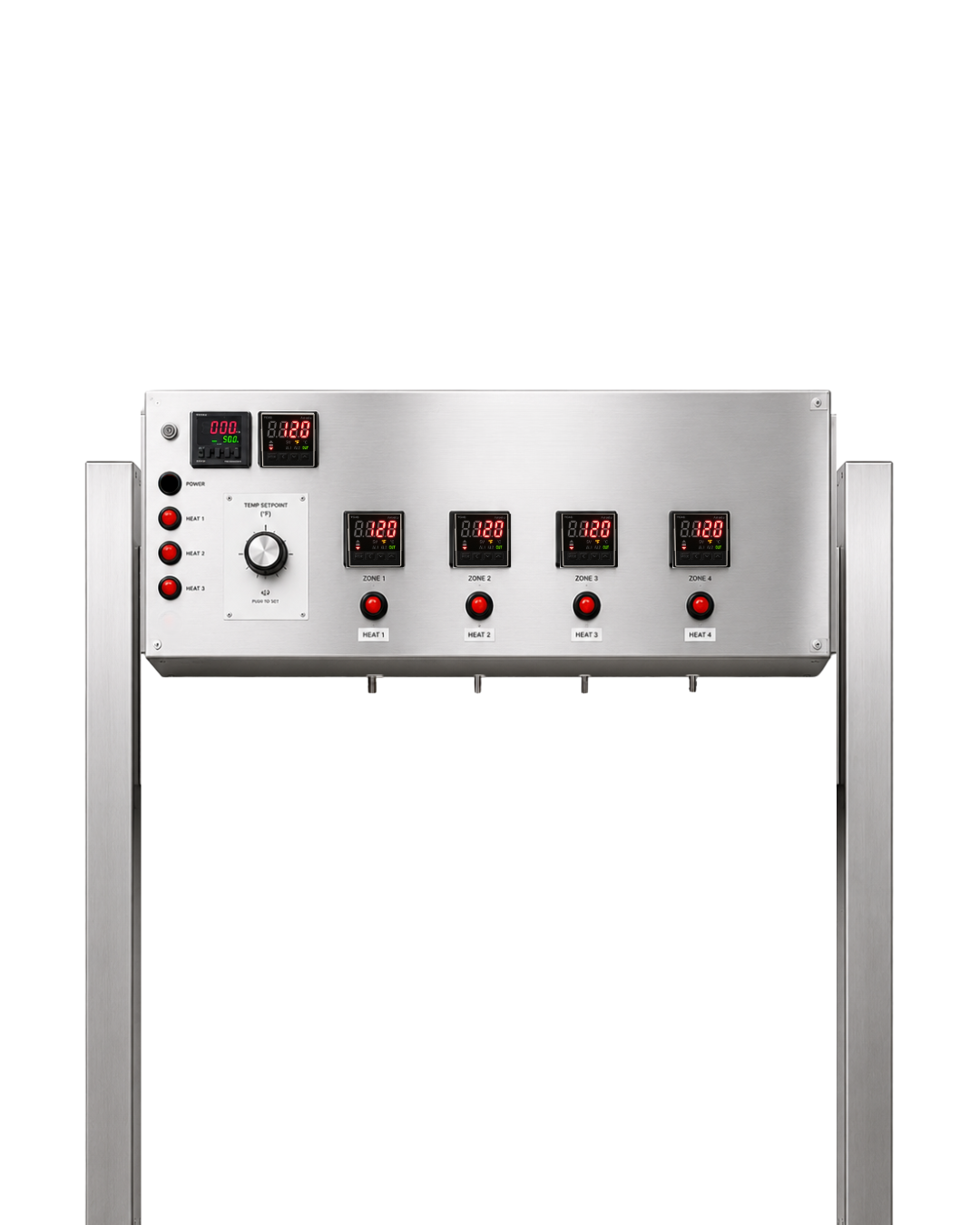

  • Fully heated digitally controlled multi-valve head
  • 304 stainless-steel head enclosure in the listed configuration
  • Four heated stainless-steel valves with Viton® seals
  • Heated stainless-steel pumping system and PTFE/Teflon®-core hose
  • Optional high-viscosity pump and photoelectric sensor for conveyor integration
  • Connects to a compatible existing melter; melter sold separately
