PRIMO 40 Gallon Waterless Heated Tilting Kettle & Pot Tipper
Tilting Heated Process Kettle System

Alternative Views:
COMPLETE • HEAT + POUR

PRIMO 40 Gallon Waterless Heated Tilting Kettle & Pot Tipper
40-gallon class; approximately 41 gal physical vessel (164 qt / 155 L) • 20" diameter × 30" deep.

  • PRIMO permanent waterless heating system
  • Digital material-temperature control
  • No jacket-water reservoir
  • Full-vessel EZTILT positioning for controlled pouring
Price: $6,495.00


Availability: Professionally Palletized & Ships in 3-5 days
Product Code: PRIMO-TK-H40


Primary Industry / Intended Use*:

Upgraded Bracketed Mixer Option:

Melter Temperature Range*:

Voltage / Electrical Service*:

Customize Outlet + Ball Valve*:

Cleaning / Washdown Environment:

Add Wax Filter?: 		SNAP Melting Tank Wax Filter [Add $69.95]

Warranty Protection Plan*:

Freight Delivery Options*:

Qty:
Description Technical Specs Extended Information

Complete • Heat + Pour • Tilting Kettle + Pot Tipper

40-Gallon Heat & Pour Batch Processing

A complete compact batch-processing system combining PRIMO waterless heating and controlled full-vessel tilting discharge in one removable stainless steel kettle.

Two Pour Positions

Upper & Lower Pouring Spouts

Pour from the lower spout while upright, then tilt to discharge through the upper spout—without transferring the batch to another container.

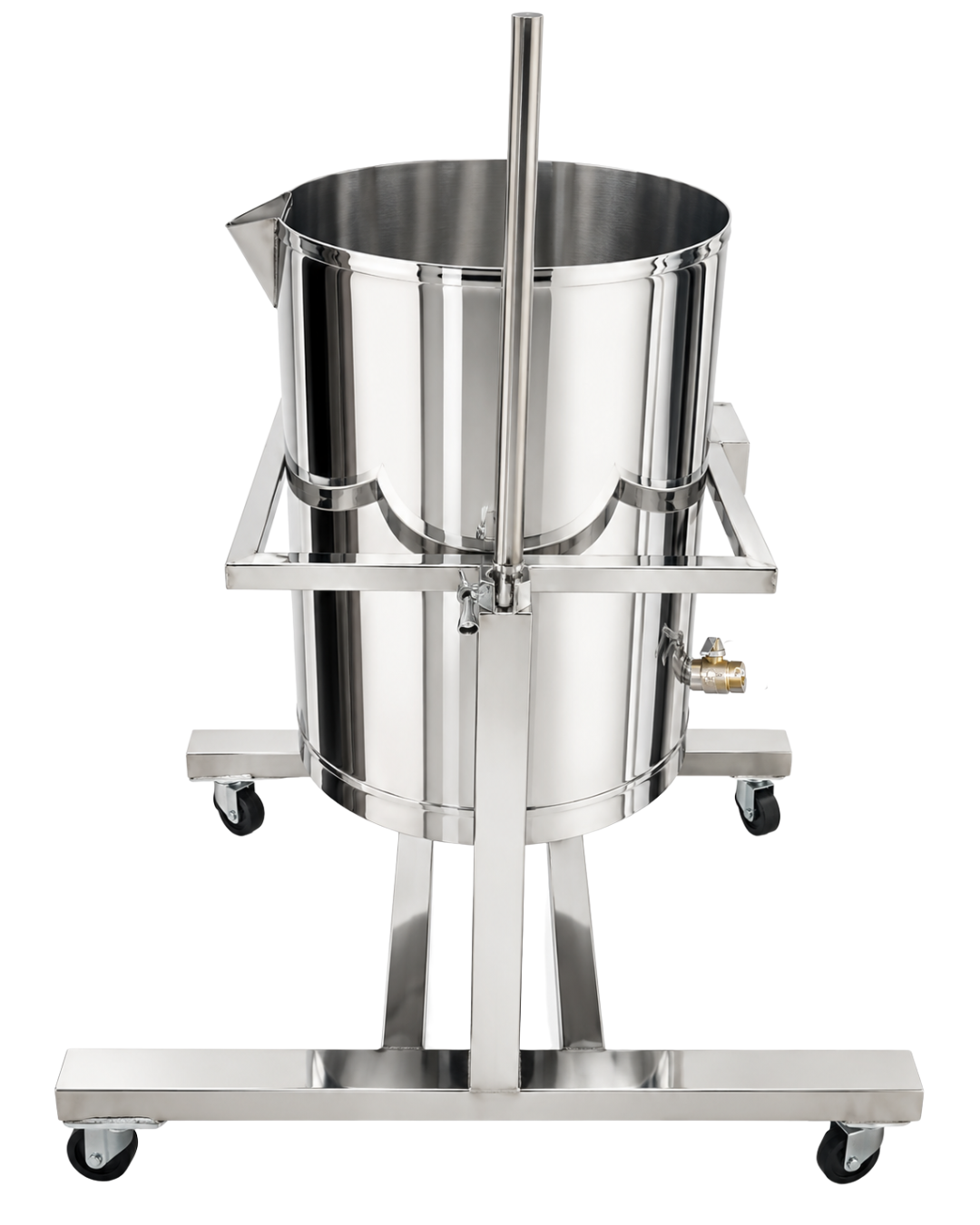

Heated tilting process kettle upright for lower-spout pouring
UprightLower-spout pour

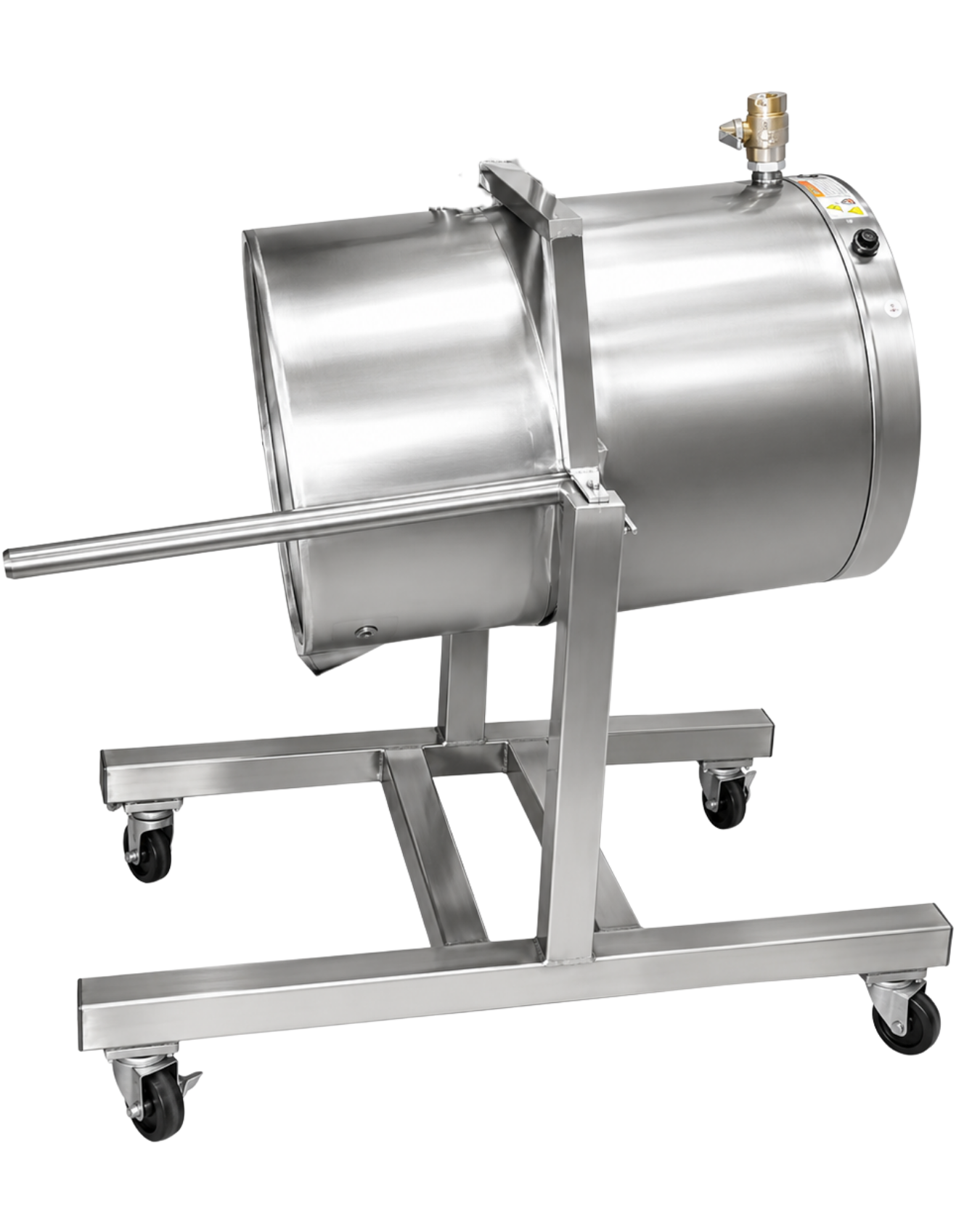

TiltedUpper-spout discharge
Simpler Changeover

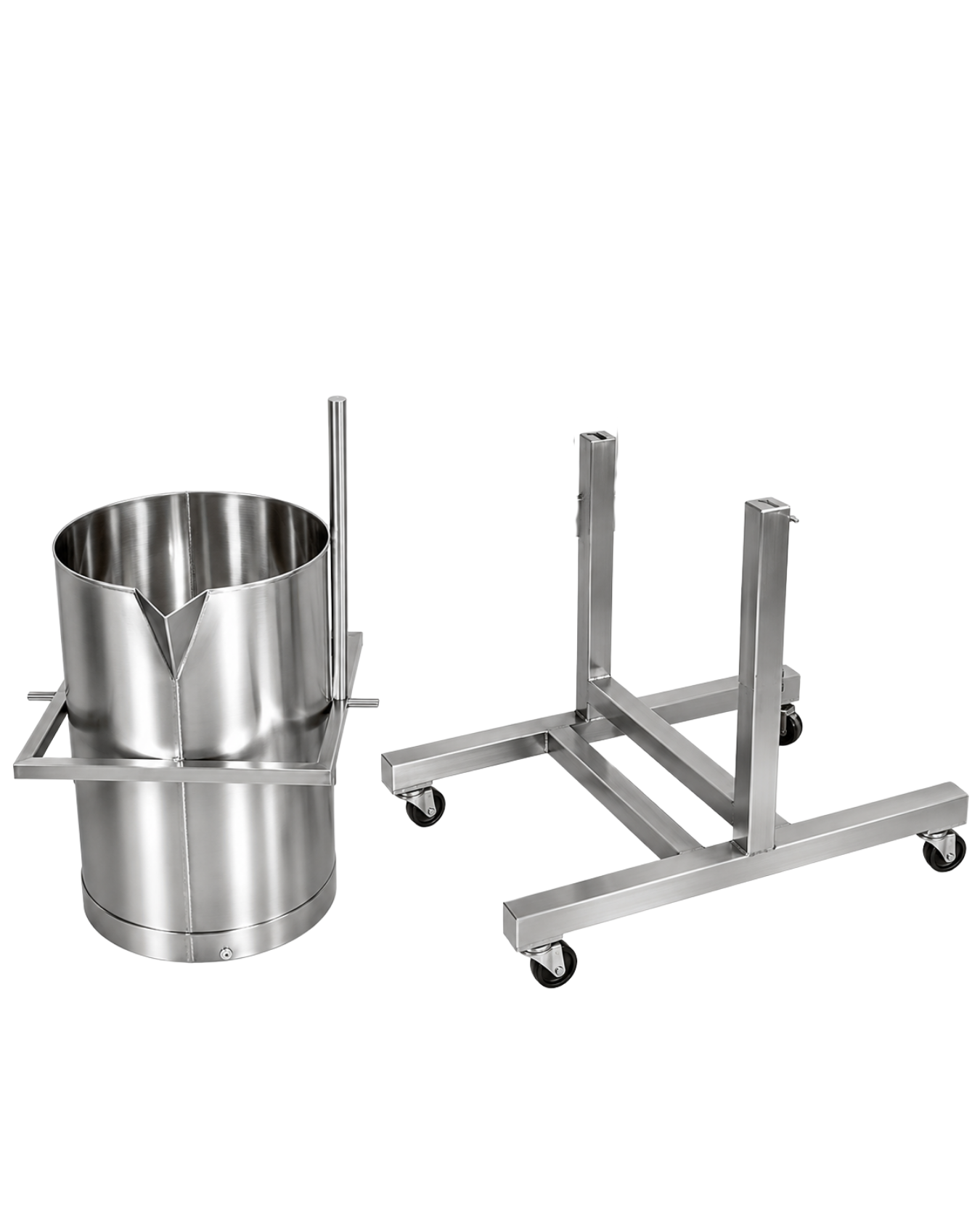

Heated Kettle Lifts Out for Cleaning

The kettle separates from the tilting stand, allowing cleaning away from the fixed frame, controls and wiring.

  • Faster changeover between formulations and colors
  • Full access to the interior surface and pouring spouts
Why This Configuration

Consolidate Heat & Pour Into One Batch Station

Instead of heating in one tankl and then moving the batch again for pouring, compatible formulations can be heated discharged from the same tilting kettle. This configuration is intended for manufacturers that want the most complete compact workflow.

Waterless Heating

Heat compatible materials without a jacket-water reservoir.

Controlled Pouring

Tilt the complete vessel for direct discharge into molds, containers or the next process step.

Tilting & Discharge

Move the Vessel, Not the Material by Hand

The tilting support lets the operator transition from the normal batch-processing position into a controlled discharge angle, reducing the need to lift or manually carry a filled process pot.

Upright Processing

Load and process the batch in the normal operating position.

Controlled Tilt

Reposition the vessel around the downstream receiving height and workflow.

Full-Vessel Pouring

Use the tilting kettle to improve controlled discharge and batch evacuation.

Cross-Industry Fit

Pot Tipper for Soap & Tilting Process Kettle for Industry

The same equipment platform serves different market vocabulary. Soap manufacturers commonly search for a Pot Tipper; food, cosmetics and industrial processors more often search for a tilting kettle or tilting process kettle.

Soap & Body Care

Oils, fats, butters, soap ingredients and compatible batch formulations.

Cosmetics & Personal Care

Balms, oils, waxes and compatible creams or specialty formulations.

Food & Specialty Ingredients

Compatible non-pressure processing subject to facility sanitation and certification requirements.

Wax & Candle Processing

Small-batch heating, additive incorporation and controlled pouring.

Adhesives / Coatings

Compatible temperature- or viscosity-dependent batch materials.

Pilot & Growth Production

Bridge manual open-pot work and larger automated transfer or filling systems.

Waterless Heating BenefitsRequest an Application ReviewFootprint & Utility Calculator
Features
  • 40-gallon commercial size class
  • Capacity reference: 25-gallon class; approximately 26 gal physical vessel (164 qt / 155 L)
  • 304 stainless steel product-contact vessel with #4 finish
  • Removable round kettle for easier cleaning and changeover
  • Full-vessel EZTILT positioning for controlled pouring
  • Upper and lower pouring / discharge positions
  • Industrial stainless steel support frame
  • Stainless steel lid
  • Application-configured valve / pouring-spout options
  • Designed for repeated batch-production use
  • PRIMO waterless permanent heating system
  • Digital material-temperature controller
  • No jacket-water reservoir
  • No routine replacement jacket heaters under normal intended operation
